AL-Apollo Series 150W
| Specifications | ||

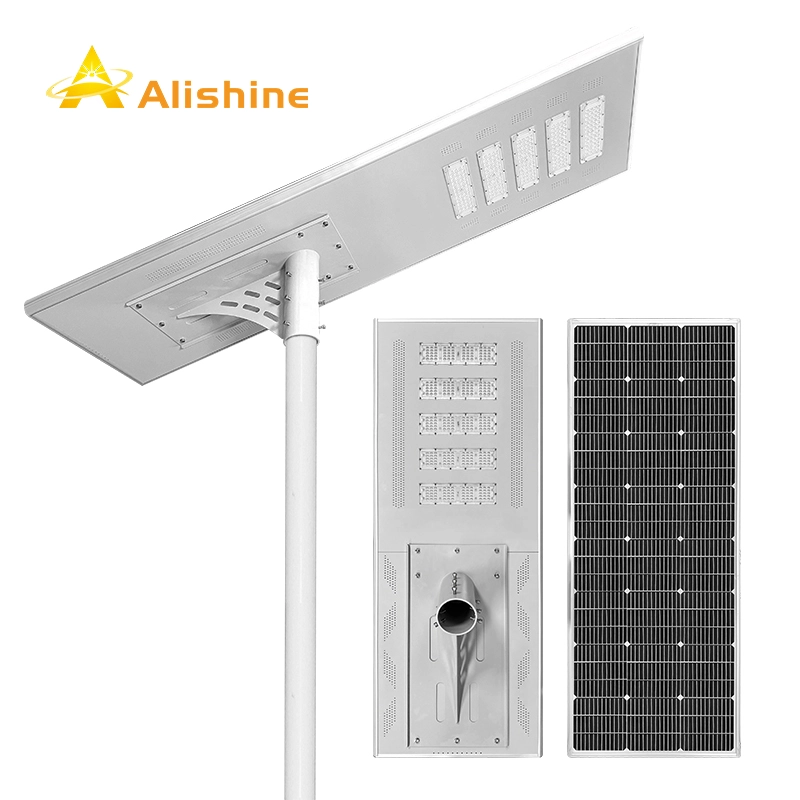

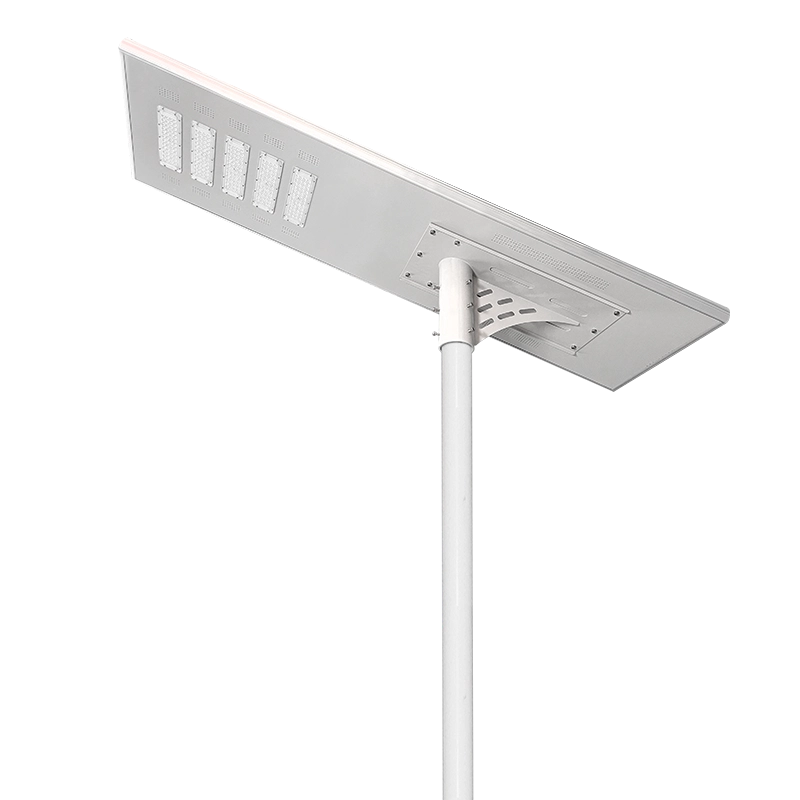

| Model: | AL-TB150 | 150W All in one solar street light |

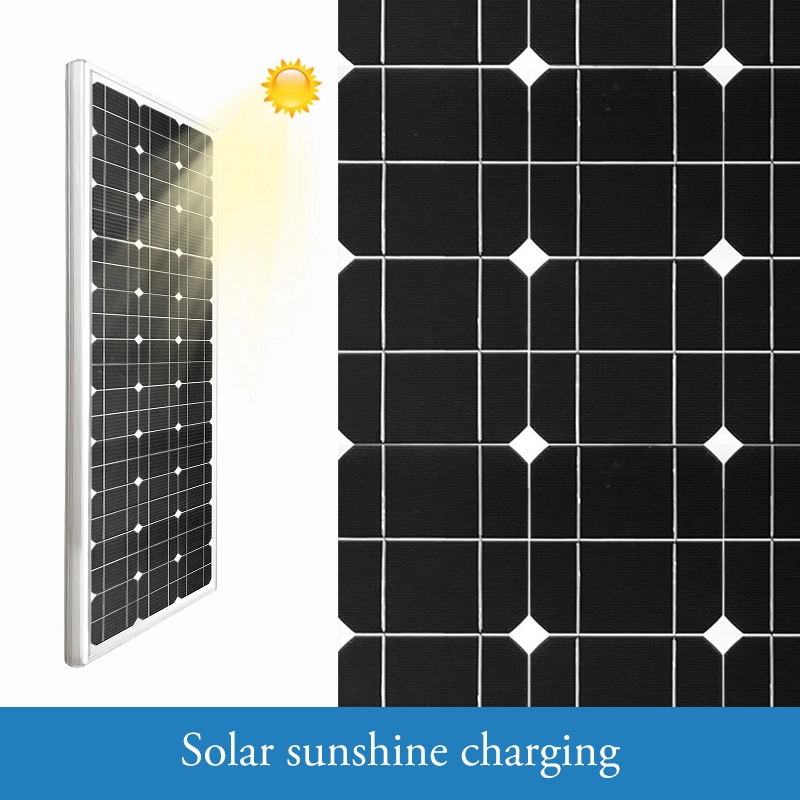

| Solar panel | Max power | 36V 150W (Monocrystalline silicon) |
| Life span | 25 years | |
| Battery | Type | LiFePO4 lithium battery 25.6V 45AH |
| Life span | 5-8 years | |
| LED Source | Power | 150W (80W) |
| Chips brand | Philips high efficiency 3030 led chips (300PCS) | |
| lumens | 170-180lm/W | |
| Life span | 50000 Hours | |

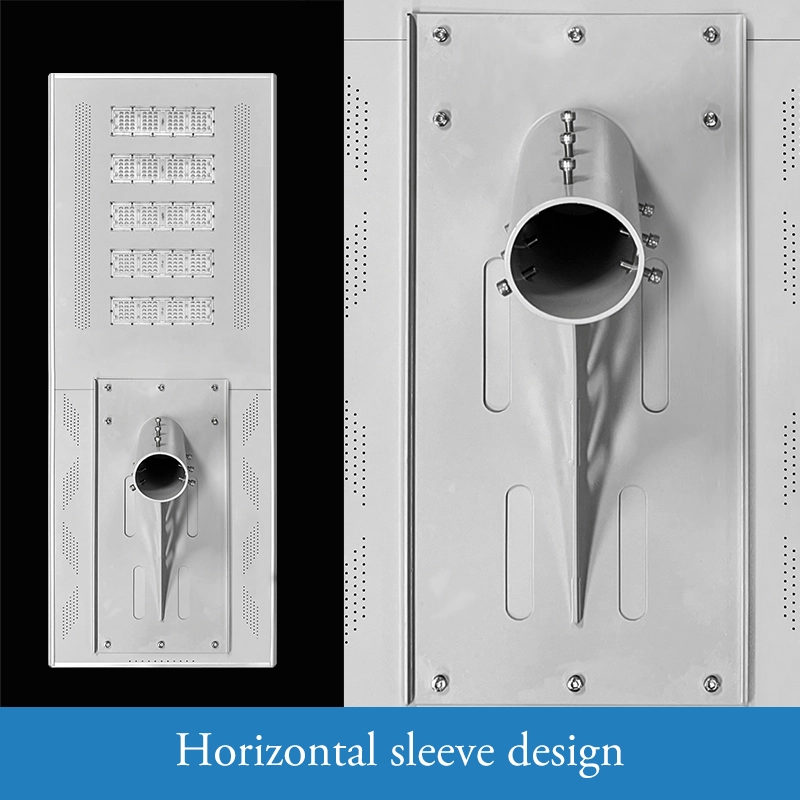

| Installation | Mounting height: 11-12M, Mounting distance: 30-35M | |
| Pole upper Diamter：∮60-∮90mm | ||
| Lamp body material | Aluminium Alloy | |
| Charging time | 6-7hours (with enough strong shine) | |
| Lighting time | 10-12 hours per day,sustain 3 rainy days | |
| Working mode | Time control and light control | |
| Catificates | CE、ROHS、IP65、ISO9001 | |
| Warranty | 3 years | |
| Packing | Product size | 1408*552*50mm |
| N.W. | 30KG | |
| Package size | 1470*615*110mm /655*315*250mm | |
| G.W. | 33KG | |
| Q’ty/ctn: | 1set/2ctn | |
| Container | 20GP | 186PCS |
| 40HQ | 450PCS | |

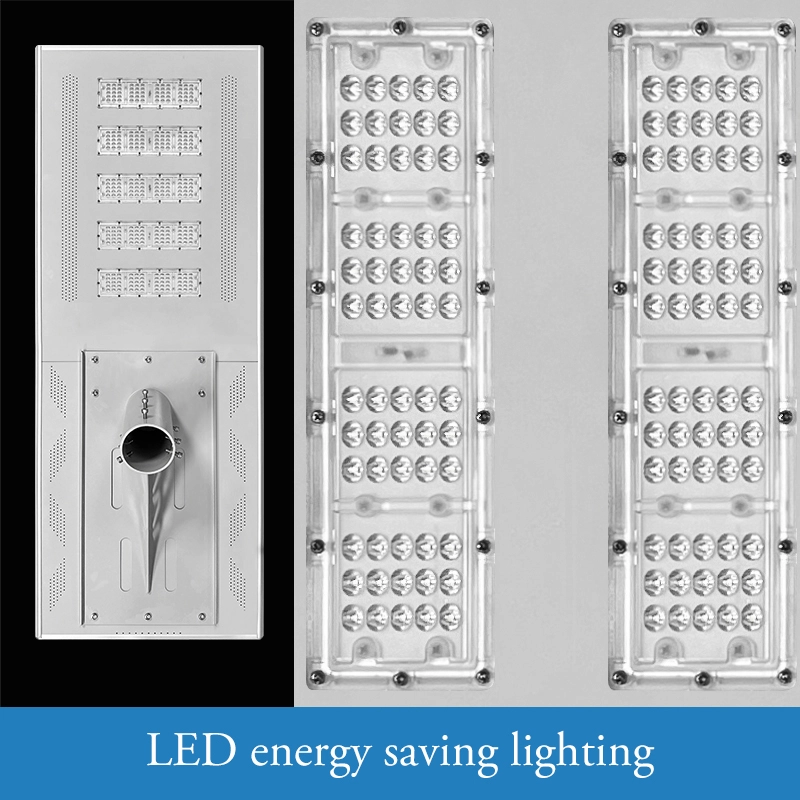

✅ Maximum Brightness Performance
Equipped with premium 3030 SMD LED chips delivering up to 160lm/W, producing a total light output of ≥24,000lm, perfect for wide, open-area lighting needs.
✅ High-Capacity LiFePO₄ Battery
Built-in Grade-A 12.8V lithium iron phosphate battery offers over 2,000 deep cycles, ensuring long-lasting performance with excellent thermal and safety stability.
✅ True All-in-One Structure
Combines solar panel, LED lighting, battery, and controller into a single, sleek unit. No trenching or cabling required — simply mount and operate.
✅ Intelligent Control System
Supports light sensor, time-based dimming, and optional motion sensing to maximize energy savings and ensure lighting when needed.

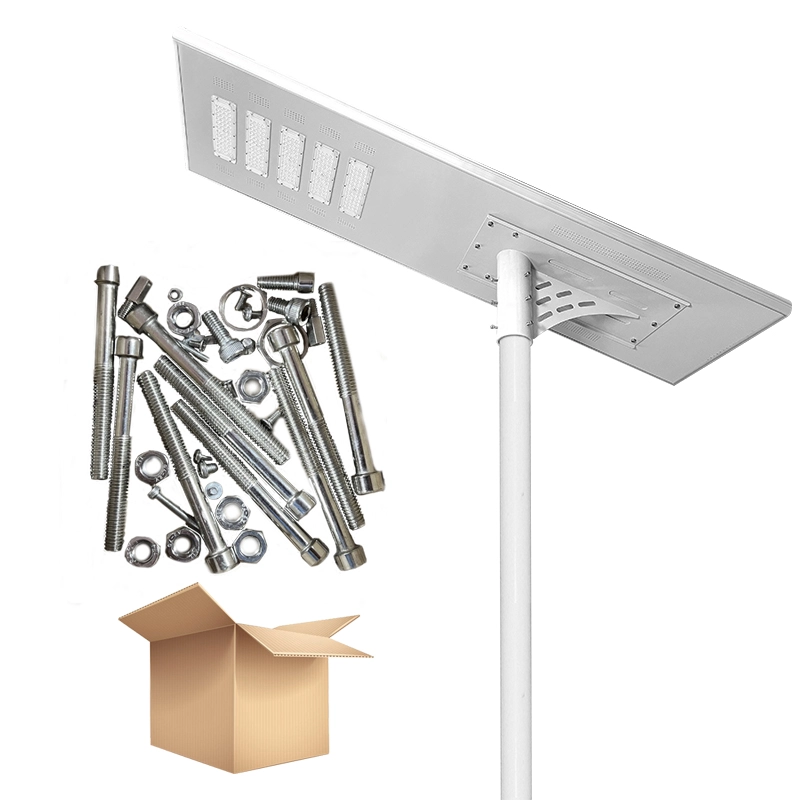

✅ High-Pole Installation Ready (8–12 meters)
Optimized for tall installations, this model performs best on poles between 8–12 meters, providing expansive and consistent ground illumination.
✅ Heavy-Duty Weather Protection
IP65-rated enclosure protects the lamp from water, dust, and corrosion — ideal for outdoor conditions including tropical rain or dry desert climates.
✅ Global Project Proven
With proven installations in over 20 countries, the 150W Apollo model is a popular choice for municipal lighting, infrastructure development, and large-area security illumination.
