AL-Apollo series 40W
| Specifications | ||
| Model: | AL-TB40 | 40W All in one |
| Solar panel | Max power | 18V 40W (Monocrystalline silicon) |
| Life span | 25 years | |
| Battery | Type | LiFePO4 lithium battery 12.8V 24AH |
| Life span | 5-8 years | |
| LED Source | Power | 12V 40W |
| Chips brand | Philips high efficiency 3030 led chips (40PCS) | |
| lumens | 170-180lm/W | |
| Life span | 50000 Hours | |

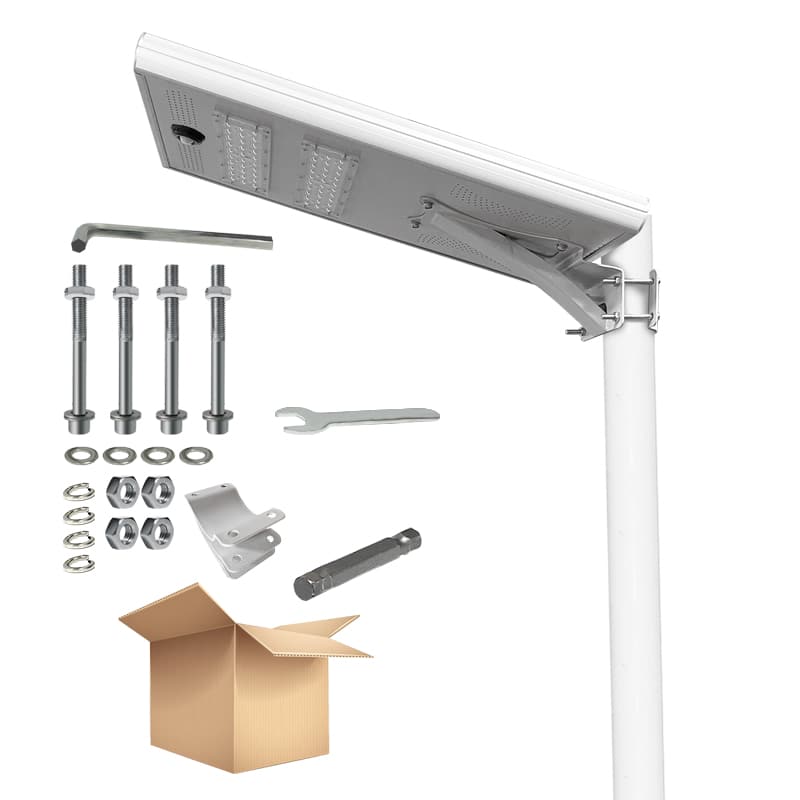

| Installation | Mounting height: 4-6M, Mounting distance: 15-20M | |
| Pole upper Diamter：∮60-∮90mm | ||
| Lamp body material | Aluminium Alloy | |
| Charging time | 6-7hours (with enough strong shine) | |
| Lighting time | 10-12 hours per day,sustain 3 rainy days | |
| Working mode | PIR sensor and light control | |
| Catificates | CE、ROHS、IP65、ISO9001 | |
| Warranty | 3 years | |
| Packing | Product size | 680*360*50mm |
| N.W. | 8.5KGS | |
| Package size | 780*405*200mm | |
| G.W. | 10 .2KGS | |
| Q'ty/ctn: | 1set/ctn | |
| Container | 20GP | 430PCS |
| 40HQ | 1050PCS | |

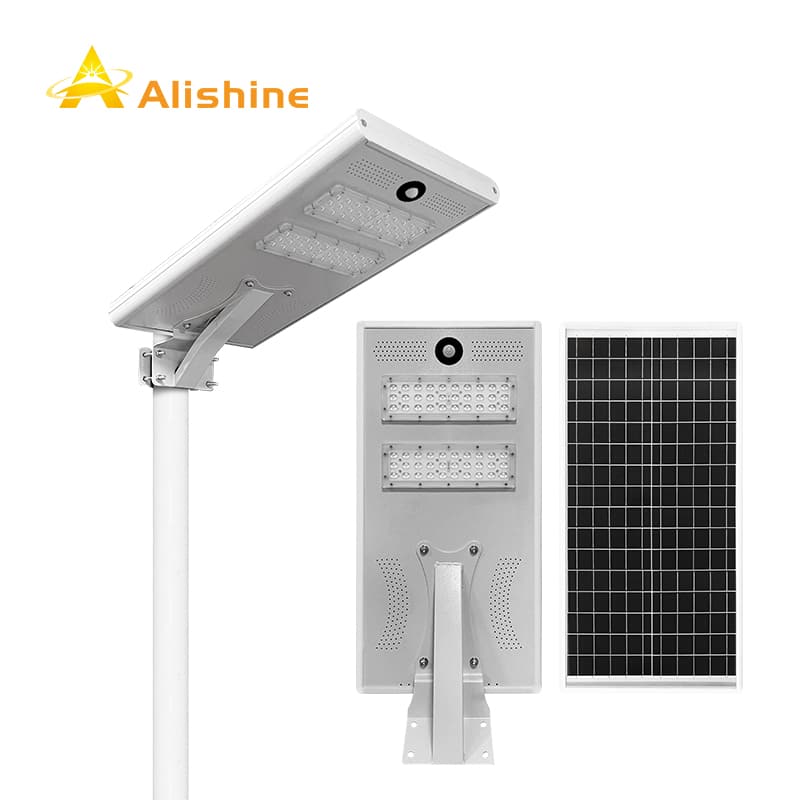

The Apollo Series is a classic line of all-in-one integrated solar street lights, renowned for its exceptional global adoption rate and long-term reliability. Designed with a sleek and robust structure, the AL-TB40 model offers a 40W output, delivering high-efficiency lighting performance while remaining energy-saving and eco-friendly.
Equipped with an A-grade 12.8V LiFePO4 lithium battery (24AH) and Philips 3030 high-efficiency LED chips (60PCS), this model ensures long-lasting performance and excellent brightness levels of 170–180 lm/W. The light is designed to operate up to 10–12 hours per night and can withstand up to 3 continuous rainy days, making it an ideal solution for various outdoor lighting applications.
✅ Key Features

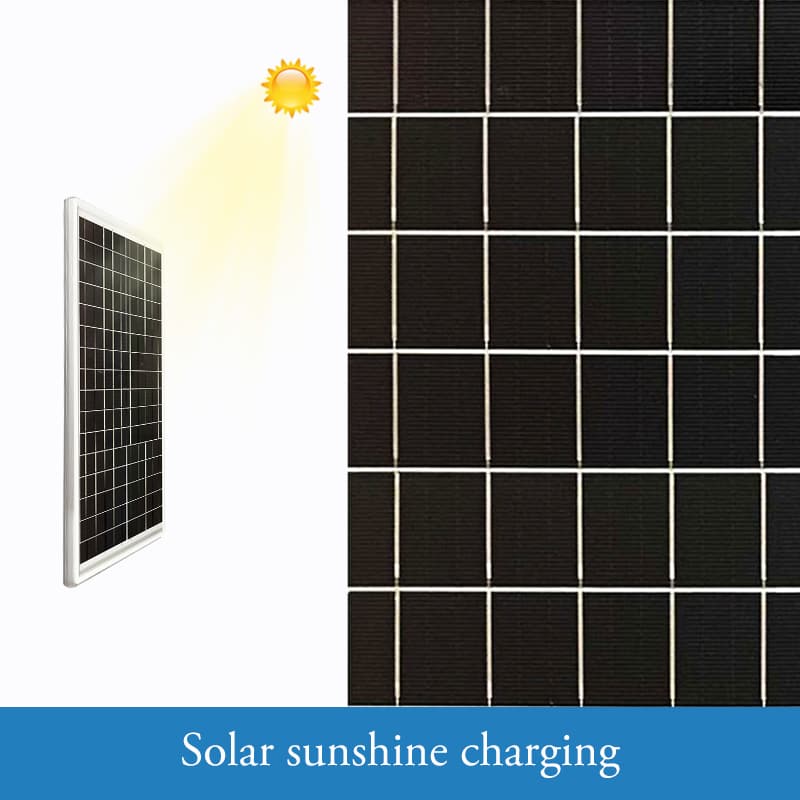

High-Efficiency Solar Panel
→ 18V 40W monocrystalline silicon panel with a 25-year lifespan ensures reliable solar energy conversion.Premium LiFePO4 Battery
→ 12.8V 24AH lithium battery with 5–8 years lifespan offers stable performance and long cycle life.Powerful LED Light Source

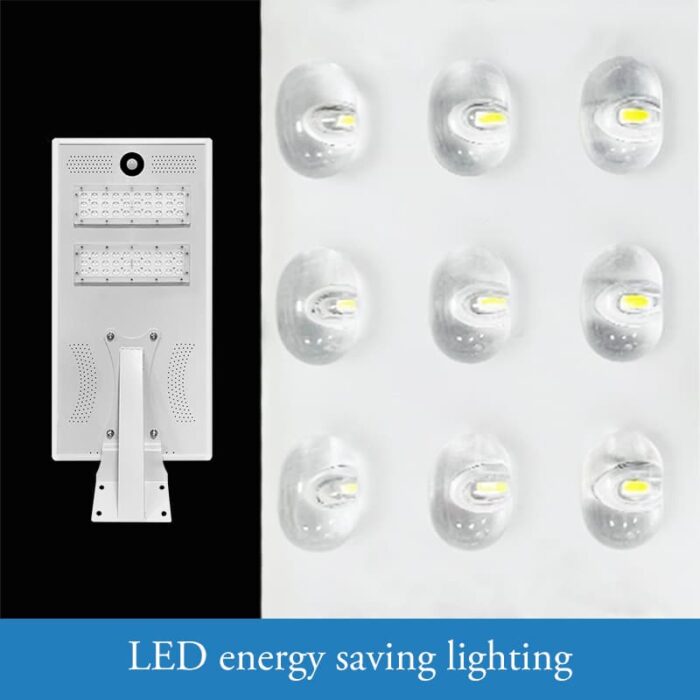

→ Integrated 40W Philips 3030 LED chips (60PCS) delivering 170–180 lumens per watt with up to 50,000 hours of operation.Intelligent Working Mode

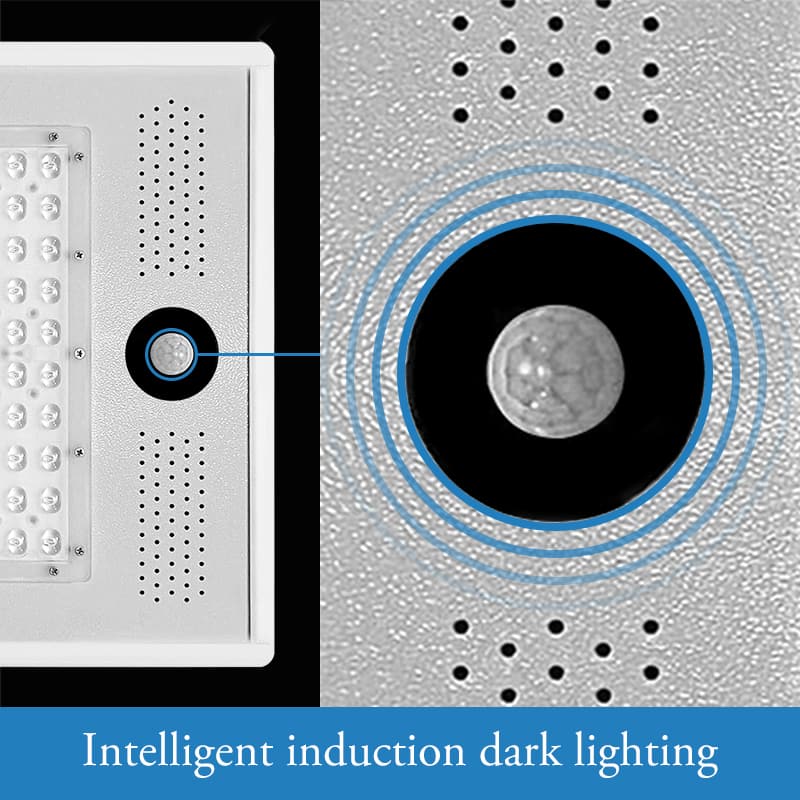

→ Built-in PIR motion sensor and light control for optimized energy management and automatic operation.Durable Structure
→ Constructed with high-strength aluminium alloy for enhanced corrosion resistance and durability.
