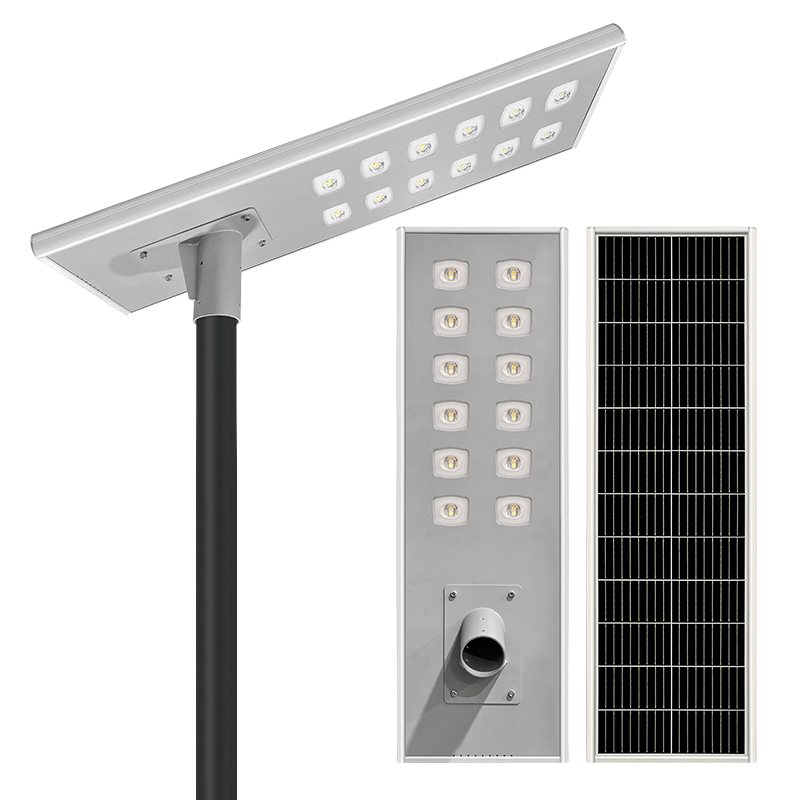

AL-CK series 120W
| Specifications | ||
| Model: | AL-CK120 | 120W All in one |
| Solar panel | Max power | 6V 65W (Monocrystalline silicon) |
| Life span | 25 years | |
| Battery | Type | LiFePO4 lithium battery 3.2V 75AH |
| Life span | 5-8 years | |
| LED Source | Power | 100W |
| Chips brand | Philips High efficiency COB led chips (12PCS) | |
| lumens | 170-180lm/W | |
| Life span | 50000 Hours | |
| Installation | Mounting height: 7-8M, Mounting distance: 25-30M | |
| Pole upper Diamter：∮60-∮90mm | ||
| Lamp body material | Aluminium Alloy | |
| Charging time | 6-7hours (with enough strong shine) | |
| Lighting time | 10-12 hours per day,sustain 3 rainy days | |
| Working mode | PIR sensor and light control | |
| Catificates | CE、ROHS、IP65、ISO9001 | |
| Warranty | 3 years | |

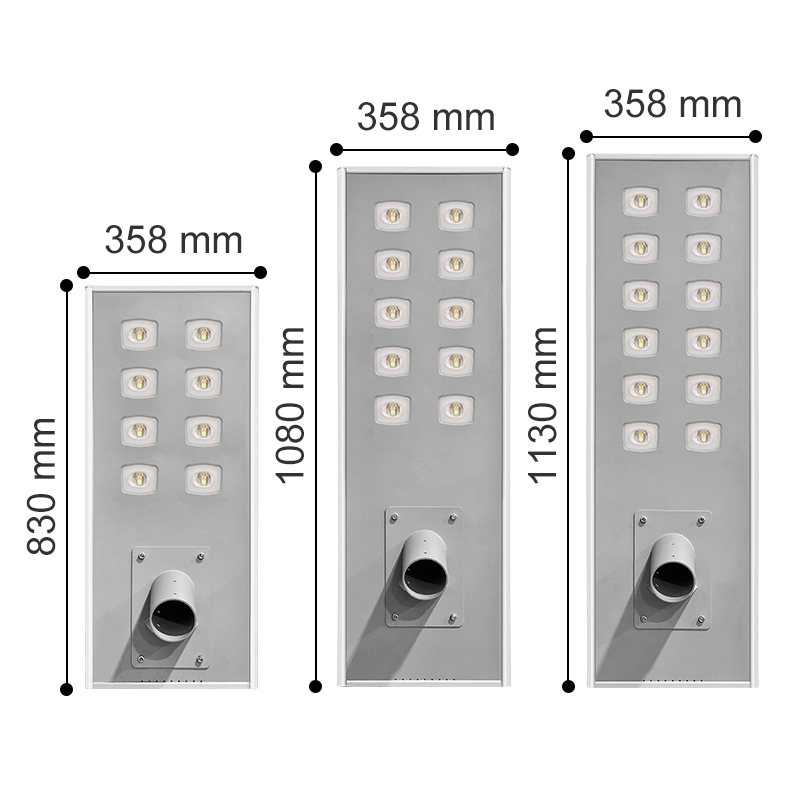

| Packing | Product size | 11130*358*50mm |
| N.W. | 11.5KGS | |
| Package size | Two Lamp:1180*410*175mm Two Sleeve:285*265*200mm | |
| G.W. | Two Lamp:21.5kgs Two Sleeve:4.6kgs | |
| Q'ty/ctn: | 2sets/2ctn | |
| Container | 20GP | 540PCS |
| 40HQ | 1336PCS | |

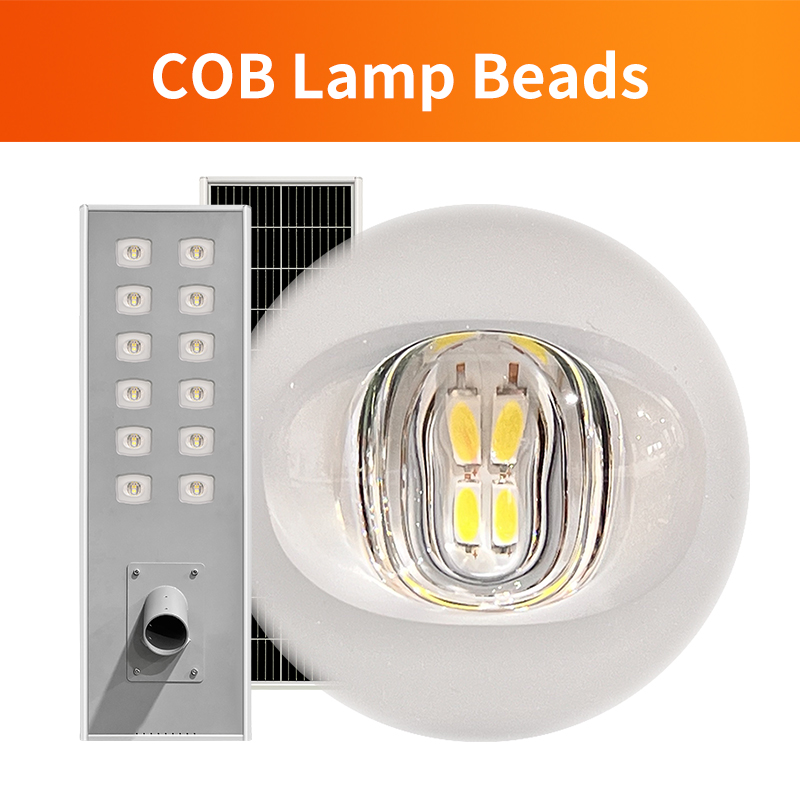

✅ High-Efficiency COB Lighting
Equipped with advanced COB LED chips that deliver superior luminous efficiency and uniform light distribution, ensuring optimal illumination for residential and community areas.

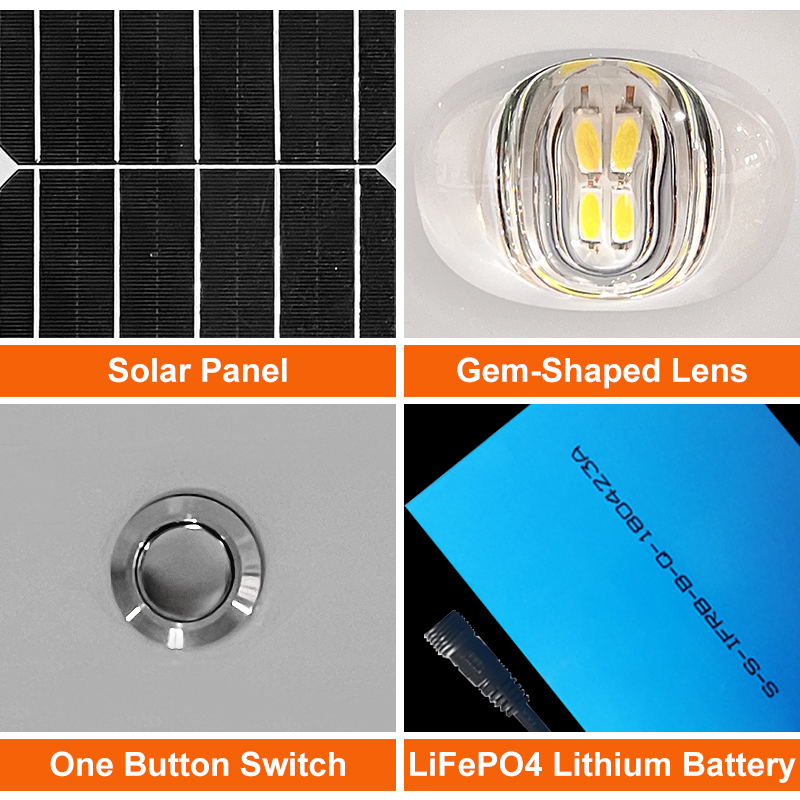

✅ Premium Power System
Integrates high-performance monocrystalline solar panels with A-grade LiFePO₄ batteries, providing stable energy conversion and extended cycle life for long-term reliability.
✅ Adaptable & Practical Design
Offers 3 flexible models suitable for installation heights of 5-8 meters, making it ideal for a wide range of applications from street lighting to perimeter security.
✅ Proven Popularity in Africa
As one of the best-selling solar street light series across African markets, CK delivers trusted performance, ease of installation, and exceptional cost-effectiveness.
✅Integrated A-Grade LiFePO₄ Battery
Equipped with premium lithium iron phosphate batteries, supporting over 2000 cycles and offering a lifespan of up to 10 years, ensuring long-term power stability and safety.
✅High-Efficiency COB LED with Optimized Optics
Features advanced COB chips and a customized optical lens for uniform, high-brightness illumination without dark areas or shadows, enhancing visual comfort and road safety.

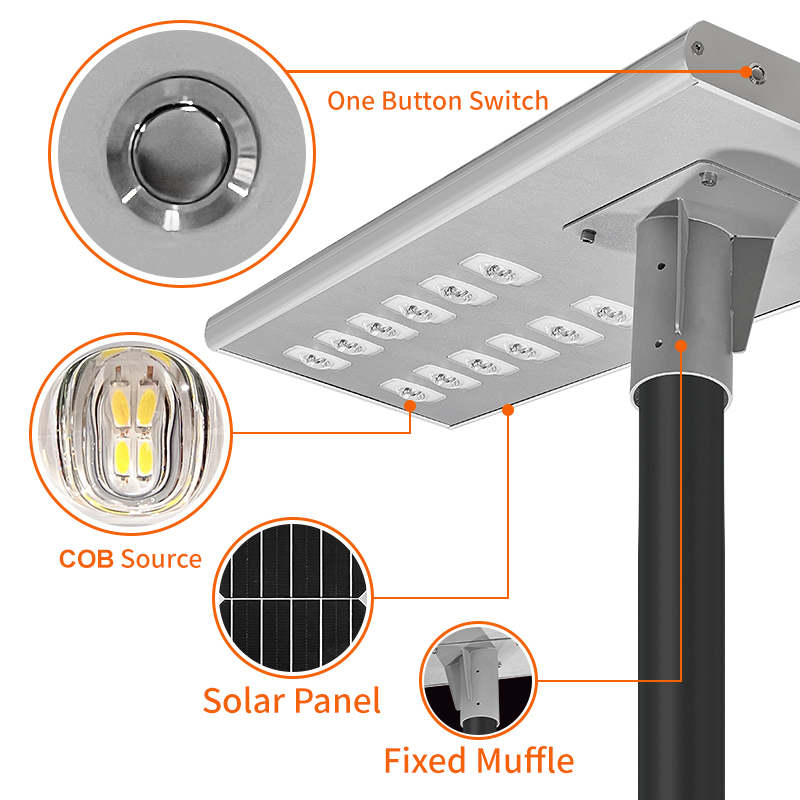

✅Robust Pure Aluminum All-in-One Body
Constructed with impurity-free aluminum alloy and fully integrated design, providing excellent heat dissipation, corrosion resistance, and high wind load resilience.
✅Compact & Aesthetic Design for African Markets
Sleek, streamlined appearance with 3 flexible models for 5-8m installation heights, offering proven adaptability and popularity across diverse African environments.
Applications
