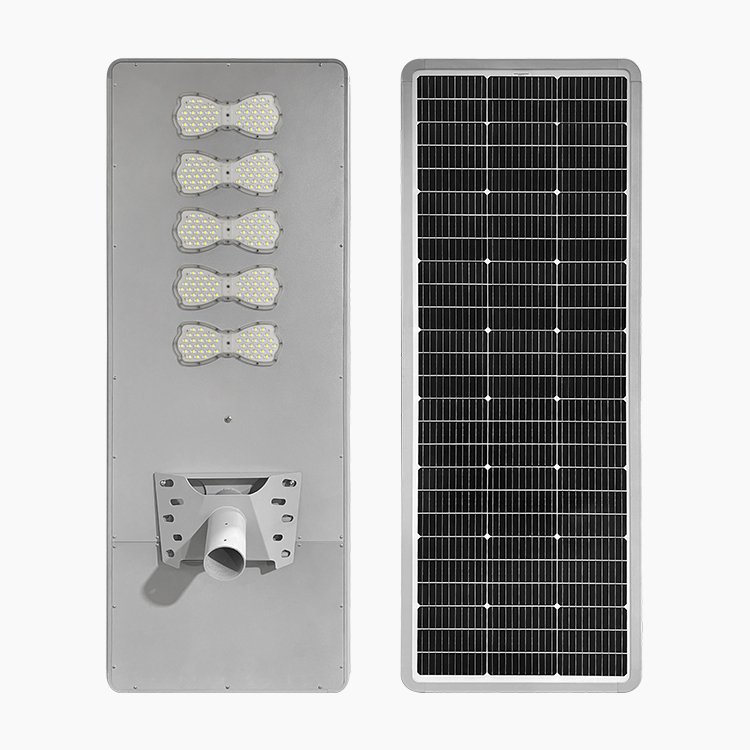

AL-EK series 200W

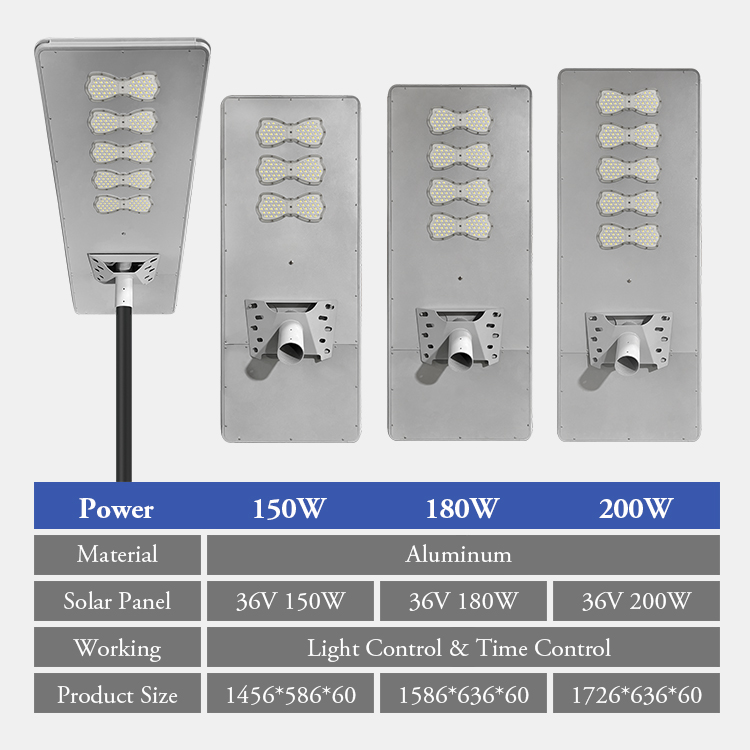

| Specifications | ||
| Model: | AL-EK200 | 200W All in one solar street light |
| Solar panel | Max power | 36V 200W (Monocrystalline silicon ) |
| Life span | 25 years | |
| Battery | Type | LiFePO4 lithium battery 25.6V 45AH |
| Life span | 5-8 years | |
| LED Source | Power | 200W |
| Chips brand | Philips 5050 with high brightness (48pcs*5) | |
| lumens | 210-220LM/W | |
| Life span | 50000 Hours | |
| Installation | Mounting height: 13-15M, Mounting distance: 25-30M | |
| Pole upper Diamter：∮70-∮80mm | ||
| Lamp body material | Aluminium Alloy | |
| Charging time | 6-7hours (with enough strong shine) | |
| Lighting time | 10-12 hours per day,sustain 3 rainy days | |
| Working mode | Time control and light control | |
| Catificates | CE、ROHS、IP65、ISO9001 | |
| Warranty | 3 years | |
| Packing | Product size | 1726*636*60mm |
| N.W. | 30KG | |
| Package size | 1775*110*690MM (Lamp) /385*250*260MM (Sleeve) | |
| G.W. | 34.5KG | |
| Q'ty/ctn: | 1set/1ctn | |
| Container | 20GP | 175PCS |
| 40HQ | 420PCS | |
✅ High-Altitude Illumination System
Specially engineered to support installation heights up to 15 meters, delivering reliable lighting performance for demanding municipal applications.
✅ Advanced Bat-Wing Optical Design
Features innovative bat-wing lens technology that creates exceptionally uniform light distribution and expanded coverage area.

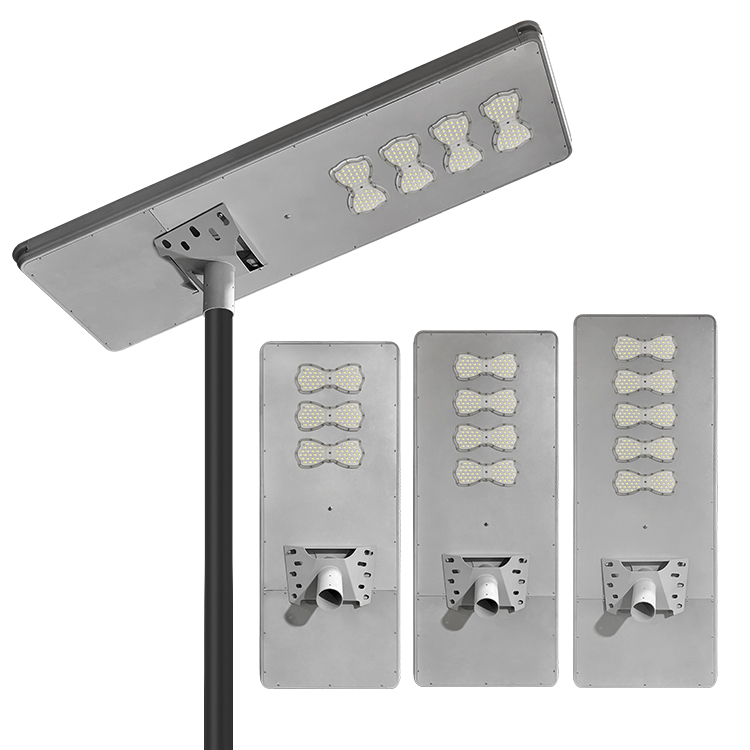

✅ Modular Expandable Configuration
Offers flexible light source board expansion capability, allowing customized illumination solutions to meet varying project requirements.

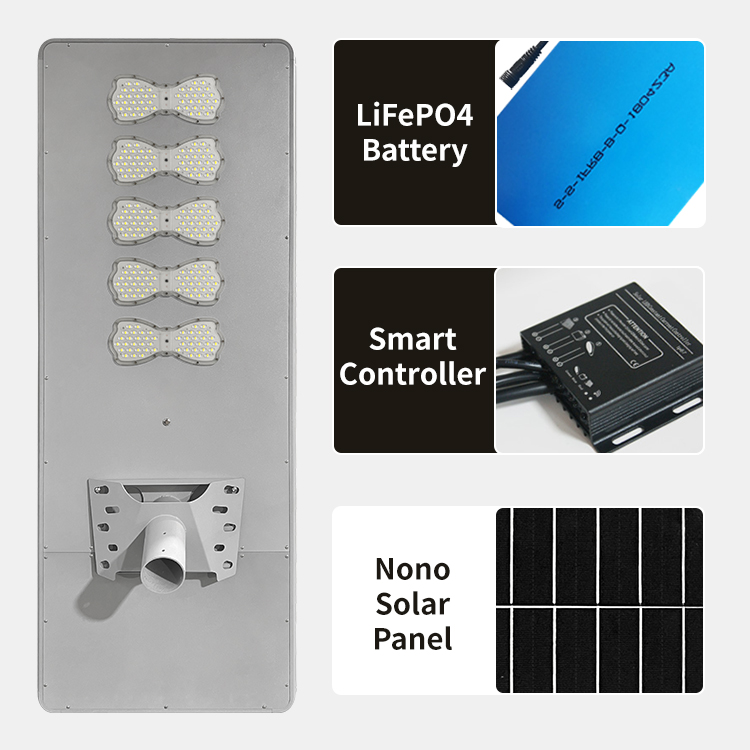

✅ High-Capacity Power System
Integrates efficient solar technology with large-capacity battery storage to ensure consistent all-weather operation.
✅ Robust All-in-One Structure
Weather-resistant integrated design simplifies installation while maintaining durability in challenging environments.
✅ Intelligent Lighting Control
Equipped with smart control options, including light sensing and programmable operation modes for optimal energy management.
Applications
